How to Choose the Right Flame Arrestor for Your Needs?

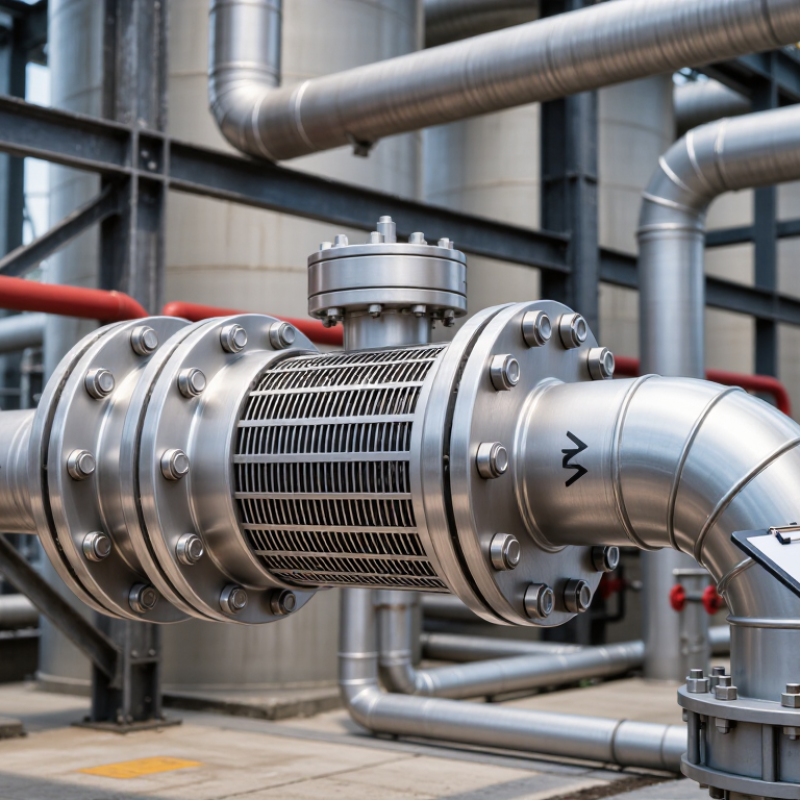

Choosing the right Flame Arrestor is a practical safety decision, not a catalogue exercise. The correct unit must match the process, not merely the pipe size. Gas composition, temperature, pressure, flow direction, and possible flame speed all matter. A device suitable for a low-pressure storage tank may fail in a high-speed process line. Small details can change the risk.

Hugh O. Pierson, a respected process-safety author, described its purpose clearly: “A flame arrester is a device fitted to an opening or connecting pipe to allow flow but prevent flame transmission.” That principle guides every sound selection. The element inside the housing must absorb heat and interrupt the flame front. Its material must also withstand corrosion, vibration, cleaning, and repeated operating cycles. Stainless steel may suit one service, while a different alloy could be necessary for aggressive vapors. Check the process data carefully.

Installation conditions deserve equal attention. A Flame Arrestor placed too far from a protected vessel may not provide the expected protection. Incorrect orientation can also reduce performance. Maintenance access matters, because dust, polymer deposits, or condensed liquid can block the element. The consequences may appear slowly.

No selection guide is perfect. Real plants contain changing conditions, incomplete records, and occasional assumptions. That is why qualified engineers should verify the application against current standards, manufacturer test data, and the site’s hazard assessment. This guide explores the key questions, common mistakes, and practical checks that lead to a more reliable choice. Safety depends on evidence, not confidence alone.

How to Choose the Right Flame Arrestor for Your Needs?

Identify the Gas Hazard Using MESG, UFL, Flame Speed, and Pmax Data

Choosing the right flame arrestor starts with the gas hazard, not the pipe size. MESG, or Maximum Experimental Safe Gap, indicates how easily flame passes through a narrow gap. A smaller MESG usually means a more severe flame transmission risk. Confirm the gas group using reliable test data, especially when handling mixtures.

UFL, the Upper Flammability Limit, shows the richest concentration that can still burn in air. It should be reviewed with the LFL, temperature, pressure, and oxygen level. Flame speed matters too. Fast flames can create intense turbulence and pressure waves inside connected equipment. Pmax describes the maximum explosion pressure under defined test conditions. It helps engineers check vessel strength, venting, and arrestor pressure ratings. These values are connected, but none should be used alone.

Tips: Request data for the actual gas mixture and operating conditions. Check whether the hazard involves deflagration or possible detonation. Verify the arrestor’s certified direction, temperature range, pressure rating, and inspection requirements. A spreadsheet may look complete while one value is outdated. Recheck uncertain data with a qualified process safety engineer. Small changes in composition can alter flame speed and MESG, so conservative selection is often wiser than a perfect-looking calculation.

How to Choose the Right Flame Arrestor for Your Needs?

Identify the Gas Hazard Using MESG, UFL, Flame Speed, and Pmax Data

Gas or Vapor MESG
(mm)
IEC/EN Gas Group UFL in Air
(vol. %)
Approx. Laminar Flame Speed
(m/s)
Maximum Explosion Pressure, Pmax
(bar g)
Relative Flame-Propagation Concern Selection Implication
Methane 1.14 IIA 15.0 0.38 8.0 Moderate Use an arrestor certified for Group IIA service and verify whether the application involves deflagration or detonation.
Propane 0.97 IIA 9.5 0.43 8.4 Moderate Confirm the certified operating range, pipe diameter, temperature class, and installation configuration.
Ethylene 0.65 IIB 36.0 0.68 8.0 High Select equipment certified for the more restrictive IIB group; assess the possibility of high-speed or unstable flame propagation.
Hydrogen 0.29 IIC 75.0 2.90 8.0 Very high Use a certified IIC arrestor specifically suitable for hydrogen, with careful review of flame speed, pressure, temperature, and detonation requirements.
Acetylene 0.37 IIC 100.0 1.58 11.0 Very high Require an arrestor explicitly certified for acetylene and the intended installation; do not substitute a general-purpose gas arrestor.
n-Butane 0.94 IIA 8.4 0.40 8.0 Moderate Choose an IIA-rated device and check the mixture concentration, operating temperature, and pressure-loss limits.
Carbon Monoxide 0.96 IIA 74.0 0.55 7.0 High Consider the broad flammable range and confirm compatibility with the actual gas composition, moisture level, and process conditions.
Engineering notes: MESG means Maximum Experimental Safe Gap and is used to help determine the gas group: IIA is generally above 0.90 mm, IIB is approximately 0.50–0.90 mm, and IIC is below 0.50 mm. UFL means Upper Flammable Limit. Pmax values are representative maximum explosion pressures in bar gauge and can vary with test method, initial pressure, temperature, gas concentration, and vessel geometry. Flame-speed values are approximate laminar burning velocities in air near ambient conditions. Final selection must also consider deflagration versus detonation protection, end-of-line versus in-line installation, operating pressure and temperature, pipe size, flow rate, and the applicable certification standard.

Classify Deflagration or Detonation Risk According to ISO 16852

How to Choose the Right Flame Arrestor for Your Needs?

ISO 16852 helps engineers distinguish deflagration from detonation hazards. A deflagration flame travels below the speed of sound. A detonation combines a flame front with a shock wave. It can create extreme pressure within milliseconds. The difference matters because a deflagration arrester may not withstand detonation conditions.

Start with the actual process layout. Record the gas composition, operating pressure, temperature, pipe diameter, and vessel volume. Check the distance between the possible ignition source and the arrester. A short vent line may support a deflagration scenario. A long, straight pipe can accelerate the flame and increase the detonation risk. Bends, valves, and closed ends also change the hazard. Small details matter.

Select equipment tested for the identified event under relevant ISO 16852 procedures. Confirm whether the application involves stable or unstable detonation, and check the permitted pressure and temperature range. Field experience shows that installation errors can undermine good equipment. An incorrect flow direction, poor drainage, or unplanned insulation may affect performance. Keep the flame path clean and inspect it regularly. Do not rely on a familiar model without reviewing changed operating conditions. That shortcut is tempting, but it can be wrong. Risk classification should be revisited after process modifications, even when the equipment appears unchanged.

Match Pressure, Temperature, and Flow Ratings with API 2000 Data

Choosing a flame arrestor starts with process data, not pipe size. API 2000 explains how normal and emergency venting depend on liquid movement, thermal breathing, and external fire exposure. Record the tank’s operating pressure, vacuum limit, maximum temperature, vapor composition, and required flow. A practical mistake is using the normal vent rate for emergency conditions. It can leave the device seriously undersized.

In a screening example, a tank may require 1,200 Nm³/h at 65°C, with a pressure limit of +2.0 kPa and a vacuum limit of −0.5 kPa. Those values must match the arrestor’s pressure, temperature, and flow ratings. API 2000 sizing methods should be checked alongside ISO 28300 guidance for atmospheric and low-pressure storage tanks. Do not treat “rated flow” as a universal number. Gas density, molecular weight, inlet pressure, and piping losses change the result.

Temperature deserves close attention. Vapor near a hot tank roof behaves differently from vapor during nighttime cooling. Confirm the maximum operating temperature, flame speed, and explosion-group requirements with qualified engineering data. A detonation-rated unit may be necessary when flame propagation can travel through connected piping. That decision depends on layout and hazard analysis. Site measurements are imperfect, too. Recheck instruments, assumptions, and the latest applicable standard before final selection.

Choose Inline or End-of-Line Arrestors by Pipe Size and Flame Path

How to Choose the Right Flame Arrestor for Your Needs?

Selecting a flame arrestor starts with the pipe, not the catalog photograph. Match the connection size to the actual nominal pipe size, then check flow capacity and allowable pressure loss. A smaller passage may protect against flame, but it can restrict vapor movement and increase system pressure. Measure carefully.

Inline arrestors suit piping where a flame could travel between connected equipment. They are commonly installed between tanks, process vessels, or vapor recovery sections. The flame path matters. Short pipe runs may involve deflagration, while longer runs can accelerate flame movement and require a design rated for more severe conditions. Confirm the gas properties, operating temperature, pressure, and installation distance before selecting the unit.

End-of-line arrestors protect an open vent or tank outlet from an external ignition source. They are useful when the flame risk comes from the atmosphere above the vessel. Their flame path is usually shorter, but the vent must still pass the required vapor flow without excessive backpressure. Keep the element clean. Dust, condensate, and corrosion can reduce the open area.

A practical mistake is treating pipe diameter as the only sizing factor. It is not. I would review the expected flame direction, because a one-way assumption can create a dangerous gap. Verify the design against current engineering standards and the equipment’s tested performance. The simplest choice may need reconsideration.

Verify ATEX or IECEx Certification, Gas Group, and Operating Limits

How to Choose the Right Flame Arrestor for Your Needs?

Verify ATEX or IECEx Certification, Gas Group, and Operating Limits

Choosing a flame arrestor starts with the hazard, not the pipe size. Check whether the certificate covers the exact model, installation position, and intended service. A certificate logo alone proves little. Review the certificate number, equipment category, temperature class, and permitted zone. ATEX and IECEx documents may use different formats, but both require careful verification.

Match the arrestor to the gas group. Common classifications include IIA, IIB, and IIC, with IIC representing the most demanding group. Confirm the gas’s maximum experimental safe gap and ignition characteristics. Methane, hydrogen, and solvent vapors do not behave alike. This detail is easy to overlook. It can cause a costly mismatch.

Operating limits matter just as much. Check maximum pressure, temperature, flow velocity, and oxygen conditions against the process data. Determine whether the unit is designed for deflagration or detonation protection. End-of-line and in-line applications need different performance considerations. Installation direction also affects drainage and maintenance access. In practical equipment reviews, unclear limits often create more risk than poor hardware. I would not rely on a general catalogue table. Ask for the current certificate, test basis, inspection interval, and replacement guidance. Leave room for uncertainty, especially when gas composition changes during production.
